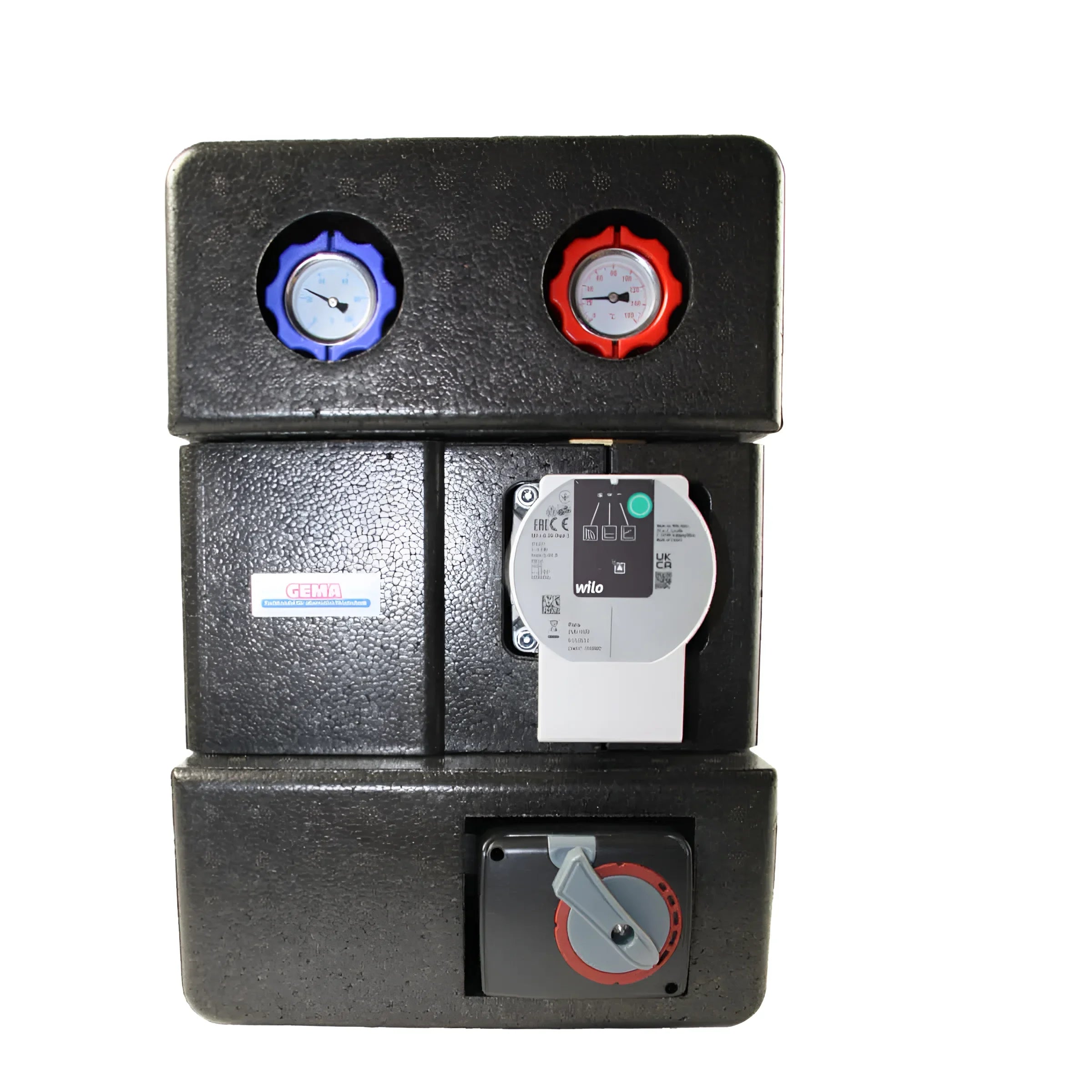

GEMA pump group DN25 with three-way mixing valve

GPO-Sunex pump group DN 25 with Wilo high-efficiency pump – efficiency and precision combined

The GPO-Sunex Pump group DN 25 with Wilo high-efficiency pump is the ideal solution for heating, cooling, and process heating systems. Equipped with a powerful three-way mixing valve, a robust mixer motor, and the proven Wilo Yonos Para 25/6, this pump group offers a combination of reliability, efficiency, and user-friendliness. With this component, you can ensure optimal circulation of the working fluid in your system.

Three-way mixing valve for precise temperature control

The pump group features an innovative three-way mixing valve specifically designed for precise system temperature control. The integrated mixer motor ensures precise control of heating or cooling flows to ensure even temperature distribution. Whether controlling room temperature in a building or fine-tuning a process heating system, this technology helps achieve the desired performance and efficiency.

Thanks to its high-quality workmanship, the valve guarantees a long service life and reliable operation for many years. It is the perfect solution for demanding applications where precision and control are top priorities.

Wilo Yonos Para 25/6 – The high-efficiency pump for the highest demands

The heart of the pump group is the powerful Wilo Yonos Para 25/6 high-efficiency pump. This pump is known for its low energy consumption and quiet operating noise. It ensures even and efficient circulation of the working fluid within the system, whether in heating, cooling, or industrial process applications.

The Wilo Yonos Para impresses not only with its outstanding performance but also with its ease of use. Intuitive settings and automatic adjustment of the operating mode make handling particularly flexible and efficient.

Extensive features for easy operation

The GPO-Sunex pump group impresses with its sophisticated features, which significantly simplify installation and operation. Two integrated ball shut-off valves not only enable quick maintenance but also precise temperature monitoring. The integrated thermometer in the supply and return lines provides you with precise readings at all times, allowing you to keep an eye on the system status.

A check valve on the supply line ensures that no unwanted fluid backflow occurs in the system, preserving the functionality and efficiency of your system. These practical components make the GPO-Sunex pump group a reliable and maintenance-friendly solution.

Easy installation and versatile applications

The pump group features a user-friendly design, allowing for straightforward installation. Its compact size allows it to be easily integrated into existing systems without taking up much space, making it attractive for both new construction and modernization projects.

Whether you are looking for a reliable solution for your central heating system, precise control for a cooling system or a highly efficient option for your process heat applications – the GPO-Sunex pump group DN 25 meets a wide range of requirements and offers maximum flexibility.

Reliability and efficiency combined

With the GPO-Sunex Pump group DN 25 you get a product that combines highest performance with modern technology.The combination of a three-way mixing valve, Wilo high-efficiency pump, and sophisticated features makes it an ideal choice for a wide variety of systems. Benefit from an efficient, durable, and precise solution for your systems.

Choose the DN 25 pump group with Wilo high-efficiency pump and experience an improvement in the performance and simplicity of your heating, cooling or process heat systems!

Technical data:

• Pump Wilo Yonos Para 130mm 25/6
• Power connection 230V/50Hz
• Power consumption l max 0.44A
• Energy efficiency = 0.20
• max. water pressure 6 bar
• max. water temperature 90°C
• Flow rate 3-way mixer KVS 12m³/h
• Connection distance 125mm
• Connections at the top 2x 1" IG
• Connections below 2x 1½" AG
• Height/Width/Depth 390/275/140mm
• Three-way mixing valve
• EPDM insulation
• Blue ball valve with thermometer - return
• Red ball valve with integrated check valve - flow

• Pump: Wilo Para 25/6 SC
• Power: 3 - 43 watts
• Wheelbase: 125 mm
• Valve opening time: 124 seconds
• Servo motor: 8 Nm


Scope of delivery

• Pump group DN 25
• Insulation shells
• Power cable
• Fastening material
• Operating instructions
