Innovative heating system solutions: efficiency, safety, and flexibility in one package
Due to the amendment of the Heating Act being "technology open", pellet heating systems are very popular again!
Defro Komfort Ekopell 14 kW – The RE 4040970
The Defro Komfort Ekopell 14 kW for pellets and wood is characterized by state-of-the-art technology and high energy efficiency. The system impresses with its automatic combustion control, which enables optimal utilization of heat and thus a reduction in heating costs. With a special hygienic storage tank and two heat exchangers, the boiler combines environmental friendliness with maximum performance.
Thanks to easy operation via a touchscreen and weather-compensated heating circuit control, the system adapts precisely to outdoor temperatures. The integrated automatic burner cleaning also ensures constant performance and minimizes maintenance effort.
Connection package Defro Komfort Ekopell – Carefully matched components
The connection kit optimally complements the Defro Komfort Ekopell. It includes essential elements such as return temperature boost, high-efficiency pump, boiler safety group, and various connection pieces. These components ensure reliable and safe integration into existing heating systems.
The variety of included components, including brass and gunmetal versions, allows for precise installation adjustment. Whether in new builds or renovation projects – the robust workmanship ensures a long service life and trouble-free commissioning.
Expansion vessel for heating (80 to 200 liters) – pressure compensation and safety
The high-quality expansion vessel in various sizes (80, 100, 140, and 200 liters) is specifically designed for reliable pressure compensation in heating systems Pellets and wood has been developed. With an operating pressure of 3 bar and a maximum flow temperature of 110°C, it ensures optimal operation even in demanding systems.
The standardized 1" thread connection allows for easy installation, while the precisely matched pre-charge pressure in the nitrogen range ensures stable operation. This minimizes the risk of pressure fluctuations and guarantees the safety of your system.
Comfort domestic hot water and process water expansion vessel (8 to 18 liters) – Reliable pressure compensation in the water sector
Specifically developed for domestic hot water and process water systems, this membrane pressure expansion vessel offers an effective solution for pressure regulation. With a pre-set pressure of 4 bar and a maximum pressure of 10 bar, the product meets the highest safety standards and guarantees a constant water supply.
The replaceable EPDM membrane allows for easy maintenance and extends the service life of the device. In addition, the uncomplicated installation without special tools ensures quick and error-free integration into a wide variety of systems.
Flowjet Flow-through Fitting ¾" – Precise Control and Safe Handling
The Flowjet flow-through fitting is a reliable solution for shutting off and draining irrigation or drinking water systems. With connections in G ¾ format and resistance to a maximum operating pressure of up to 16 bar, the fitting offers flexibility and durability.
Thanks to its compatibility with T-pieces that also support larger nominal bore sizes, the fitting can be easily integrated into existing systems. This ensures safe, precise, and easy-to-use control of your water regulation.
Hygienic buffer tank with 2 heat exchangers – Efficient and hygienic heat supply - Pellets and wood
The hygienic buffer tank combines the advantages of a tankless water heater with those of a classic boiler. An integrated stainless steel heat exchanger enables fast, precise, and hygienic heating of domestic hot water. This not only ensures a constant water temperature but also minimizes the risk of legionella formation.
The robust buffer tank made of S235 steel with high-quality polyester fiber fleece insulation ensures that excess heat is optimally stored and released later. This results in high efficiency and sustainable use of heating energy – ideal for systems with different heat generators.
Connection package for combination tank – Practical installation for optimal integration
The connection package for combination tanks offers a universal mounting set for buffer tanks, stratified combination tanks, and hygienic combination tanks. With specially selected components such as connection insulating plugs, automatic air vents, and boiler fill/drain valves, a safe and efficient installation is ensured.
The included universal ball valves and the hot water/domestic hot water mixer with scald protection enable optimal heat distribution and additional protection against scalding. A comprehensive installation and hydraulic diagram completes the set and guarantees straightforward commissioning in a wide variety of heating systems.

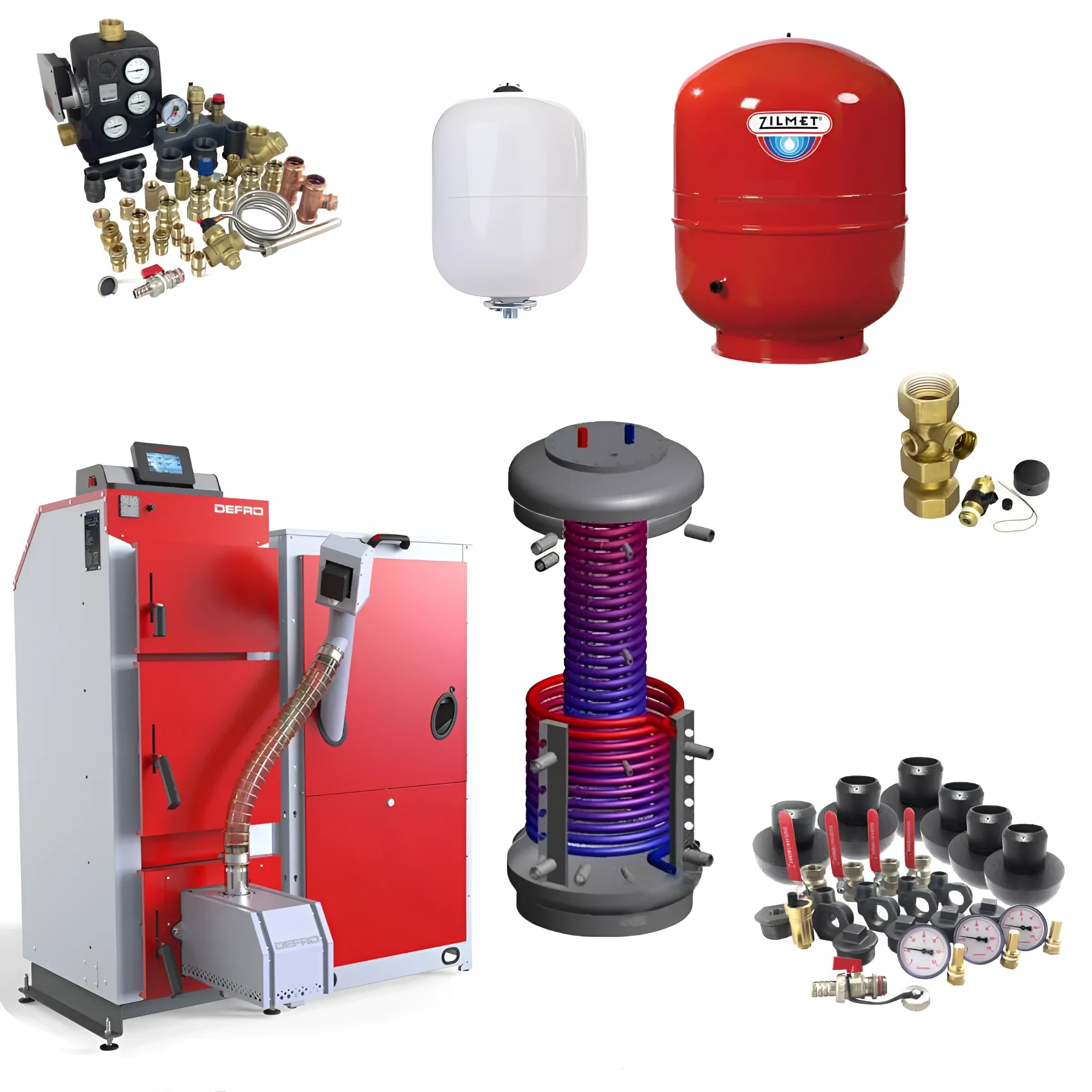

Scope of delivery
- Pellet boiler Defro Komfort Ekopell 14 kW -Pellets and wood
- Connection package boiler - optional
- Expansion vessel for domestic hot water 80 liters incl. cap valve
- Expansion vessel for drinking water 12 liters incl. Flowjet
- Hygiene storage tank with 2 heat exchangers - 800 liters
- Connection package hygiene storage tank
