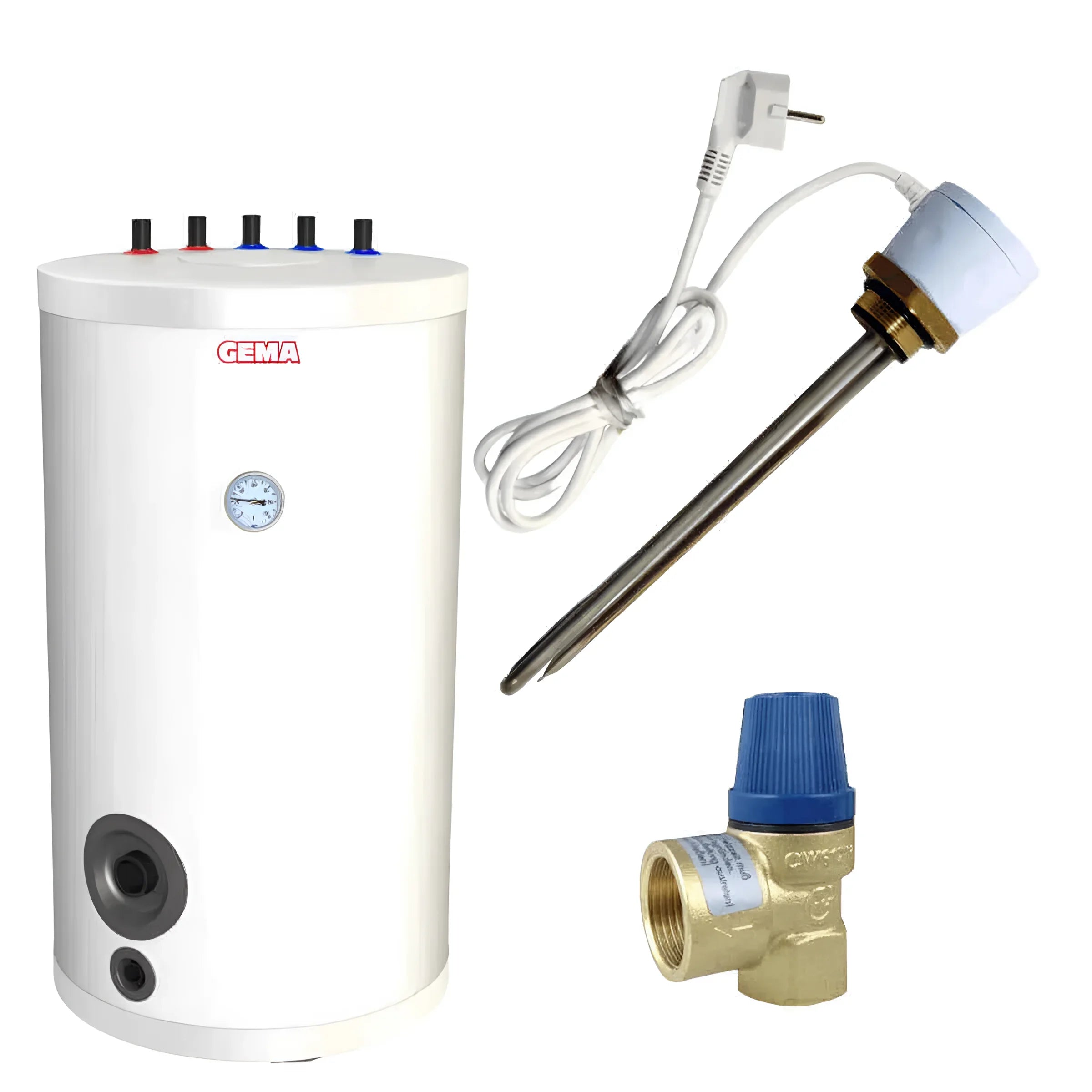

Hot water tank 100 liters with 1.5 kW heating element
100 litre hot water tank with 1.5 kW heating element
Product overview of hot water storage tanks
The 100-liter ETWS hot water tank offers a centralized and safe solution for domestic hot water heating. It is ideal for meeting domestic hot water needs via a highly efficient heat exchanger and can be used in both residential and commercial applications.
Thanks to the integrated heat exchanger, energy from solar thermal systems, boilers, or alternative systems is optimally utilized for water heating. This flexibility enables demand-based and energy-efficient hot water preparation.
Efficient hot water preparation
The internal heat exchanger ensures efficient heat transfer to the domestic water. This allows even excess energy from alternative energy sources such as photovoltaic systems to be used effectively – supported by the option of connecting a retrofittable electric heating element.
The insulating polyurethane foam, tightly foamed, reduces heat loss and thus contributes to a high level of hot water comfort, which is reliably met even with increased demand of 100 to 180 liters.
Protection and longevity
The drinking water storage tank is protected against corrosion by a high-quality enamel coating on the inside. Additionally, a generously dimensioned magnesium anode acts as a sacrificial anode for enhanced protection, thus extending the service life of the device.
The integrated circulation connection and various connection options ensure easy integration into the existing system and optimize the operation of the entire hot water preparation process.
Technical data hot water tank
Volume: 100 liters; Heat exchanger surface: 1.2 m²; Heat exchanger capacity: 5.27 liters. The connections for flow, return, and circulation are each 3/4" AG, supplemented by a 1 1/4" IG connection for the magnesium anode and a 1 1/2" IG connection for the electric heating element.
The storage tank operates at a maximum operating temperature of 95 °C at an operating pressure of 6 bar, while the heat exchanger can withstand temperatures up to 100 °C. The low loss profile of 28 watts and the compact dimensions (625 x 770 mm) make the hot water tank a space-saving and efficient solution.
Powerful heating element
The 1.5 kW electric heating element is a robust and versatile accessory that optimally supports the hot water tank. Made of high-quality stainless steel and equipped with a sturdy thermostat housing, it guarantees fast and reliable water heating.
The heating element impresses with its compact design and easy integration into the existing system, as it can be seamlessly connected via a 1 ½" connection.
Precise temperature control and safety
With an integrated thermostat covering a temperature range of 5°C to 75°C, the heating element allows for precise control of the water temperature. The switch-on hysteresis of 7-10°C ensures stable operation and avoids frequent switching cycles, thus reducing wear.
An integrated frost protection mechanism ensures operation in cold environments, while a safety temperature limiter at 93°C protects against overheating and provides additional safety.
High-quality materials and easy installation
The Alloy 825 heating coil is characterized by excellent corrosion resistance. The exterior housing made of durable white plastic not only underscores the modern design but also the robustness of the device. The IPX4 protection rating also ensures reliable splash protection.
Thanks to an installation length of 300 mm (with an unheated length of 70 mm) and a 1.5 meter long connection cable with a Schuko plug, installation is quick and easy – so the heating element is quickly ready for use.
Technical data heating element
Heating capacity: 1.5 kW; temperature range: 5-75°C; switch-on hysteresis: 7-10°C. The installation length is 300 mm, while 70 mm remains unheated. The safety temperature limiter activates at 93°C, and the heating element is designed for a maximum operating pressure of 10 bar.
With a 1 ½" AG connection and IPX4 protection rating, combined with the durable Alloy 825 material, the heating element combines modern technology and high-level safety.
Versatile applications
The hot water tank, combined with the powerful electric heating element, is suitable for a wide range of applications. It can be integrated into both residential and commercial buildings, and easy integration with solar systems, pellet boilers, or wood gasification boilers opens up further application possibilities.
This flexibility makes the system a sustainable investment that meets the high demands of modern hot water concepts.
Conclusion
The combination of an efficient 100-liter hot water tank and a 1.5 kW electric heating element offers a powerful and safe solution for hot water production. With sophisticated safety features, durable materials, and a user-friendly design, this system impresses in every respect.
Whether as a supplement to renewable energies or as a reliable support in conventional heating systems – this product represents a modern and future-proof choice for anyone who values the highest efficiency and quality.
Technical data
Technical data hot water tank
- Volume: 100 liters
- Heat exchanger surface: 1.2 m²
- Heat exchanger capacity: 5.27 liters
- Connection flow and return heating: 3/4" AG
- Connection flow and return domestic water: 3/4" AG
- Circulation connection: 3/4" AG
- Magnesium anode connection: 1 1/4" IG
- Connection for electric heating: 1 1/2" IG
- Thermal insulation: polyurethane foam (PUR)
- Max. operating temperature storage 95 °C
- Max. operating pressure storage tank/heat exchanger: 6 bar
- Max. operating temperature heat exchanger 100 °C
- Loss: 28 watts
- Dimensions with insulation (diameter x height): 625 x 770 mm
- Weight (empty): 64 kg
Technical data heating element
- Heating output: 1.5 kW
- Temperature range: 5-75°C
- Switch-on hysteresis: 7-10°C
- Installation length: 300 mm
- Unheated length: 70 mm
- Safety temperature limiter: 93°C
- Connection: 1 ½" AG
- Max. operating pressure: 10 bar
- Protection class: IPX4
- Heating coil material: Alloy 825
- Housing material: plastic, white
- Power supply: 230V/16A, single-phase
- Connection cable: 1.5 meters with Schuko plug
Scope of delivery
- Hot water tank 100 liters
- Heating element 1.5 kW with 1 1/2" AG
- Operating and assembly instructions
