ATMOS KC35S coal carburetor for wood and coal

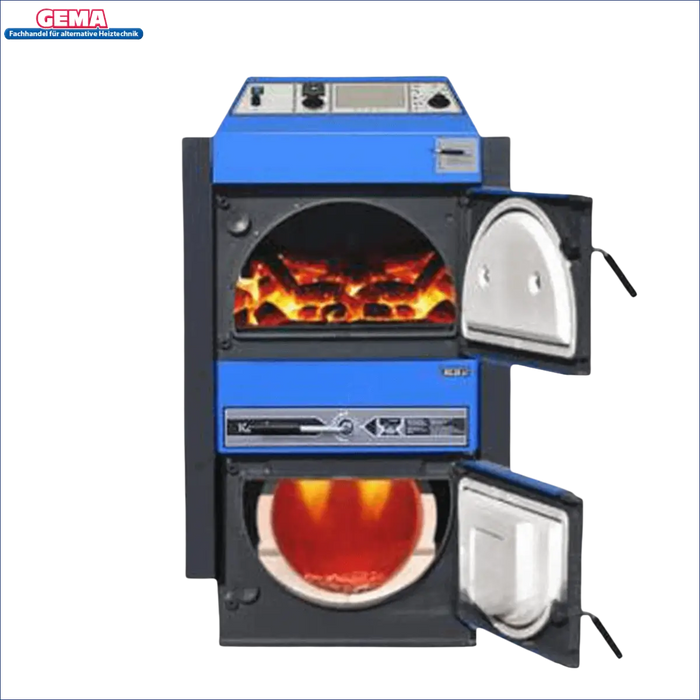

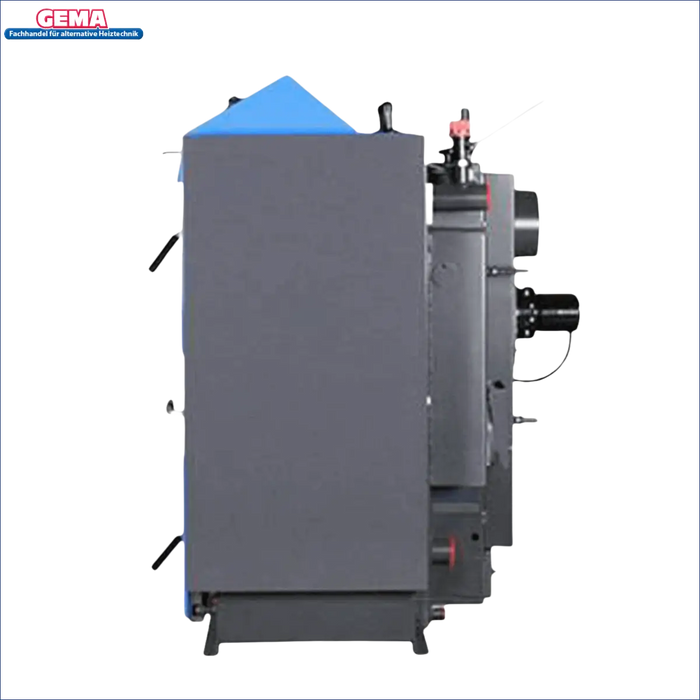

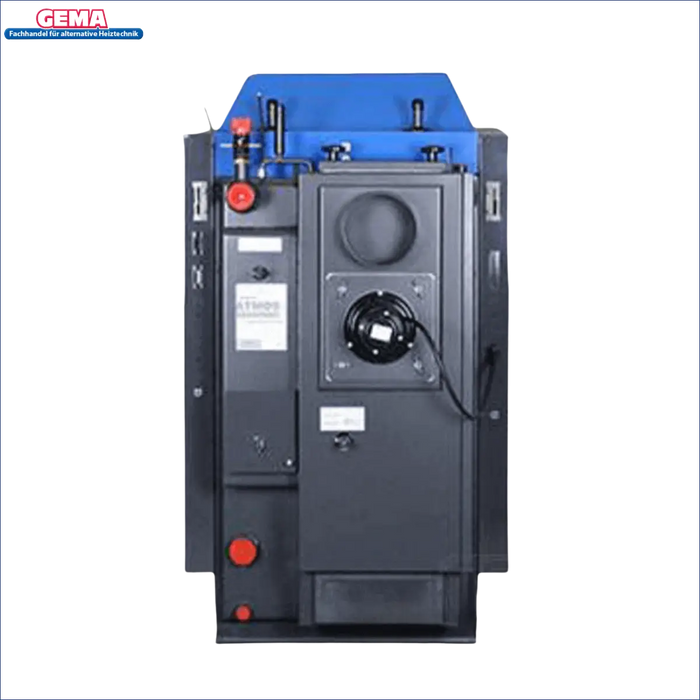

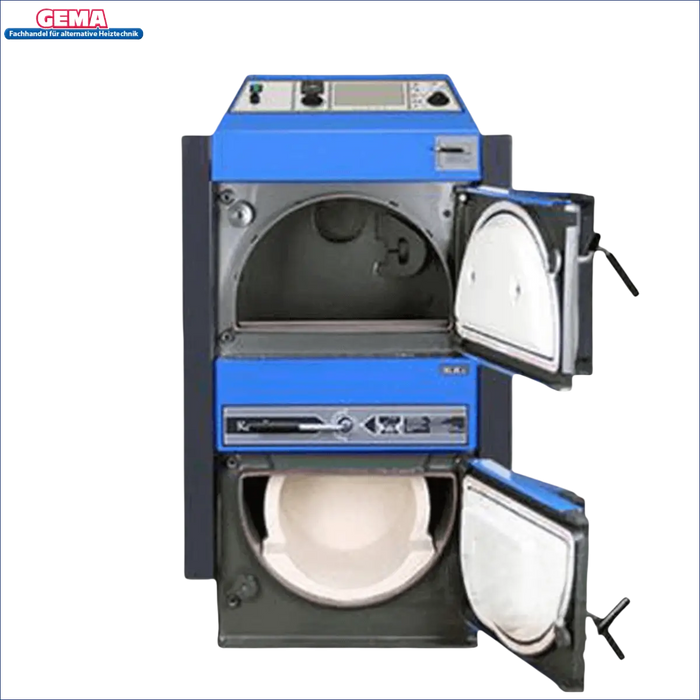

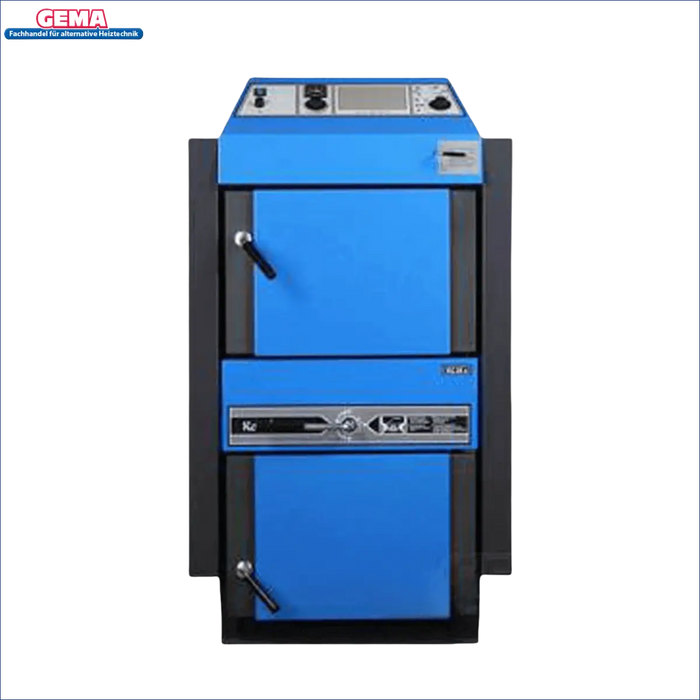

Coal boiler Atmos KC35S
The Atmos KC35S is a coal gasification boiler that can also use logs as a substitute fuel.
A gasification boiler for wood and coal. It is specifically designed for heating family homes, weekend cottages, country houses, workshops, and similar properties. The boiler body is made of 6 and 8 mm thick sheet steel and offers significantly better heat transfer than cast iron.
A coal gasification boiler as a good replacement boiler for GK21 and other old cast iron boilers
The Atmos KC series is the perfect replacement for all outdated cast iron boilers, such as the GK21, GK31, or K30 coal-fired boilers. In addition to coal, the KC can also burn wood very effectively, achieving a maximum efficiency of 86%. It also meets all the necessary requirements of the Federal Immission Control Ordinance (BImSchV) and is therefore approved for use in Germany.
Advantages: Coal boiler Atmos KC35S
- Special gasification boiler suitable for many fuels
- Ceramic combustion chamber with rotating cast iron grate
- Secondary air preheating ensures optimal combustion during the heating phase and rapid performance
- Cast iron grate sits in a ceramic bowl – new design specifically for the gasification of lignite briquettes and hard coal
- Easy cleaning of the combustion chamber and the exhaust duct with tube heat exchanger
- High efficiency up to 86%
- Modern design and attractive price
Technical data
- Energy efficiency class C
- Boiler class 3
- Nominal heat output 35 kW
- Efficiency 87.6%
- Tension requirement 24 Pa
- CO content 196 mg/m³
- Dust emission 13 mg/m³
- Prescribed fuel: coal, logs
- Maximum firewood length 330 mm
- Exhaust gas temperature 219 °C
- Exhaust gas mass flow 0.019 kg/s
- Height 1435 mm
- Width 675 mm
- Depth 758 mm
- Flue pipe connection 150/152 mm
- Weight 355.0 kg
Scope of delivery:
- ATMOS KC - Gasification boiler
- Honeywell draft regulator
- Cleaning accessories
- Ash container
- Honeywell draft regulator
- Filling tap
- Assembly and operating instructions
